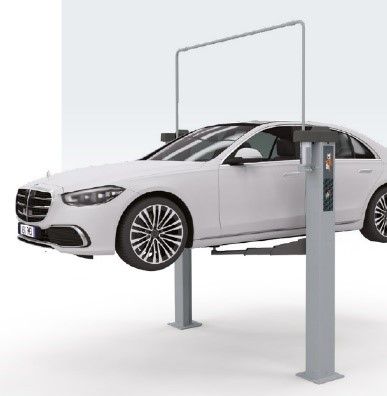

Space Sdx35 2-post Lift 3.5 TonneElectroMechanical

Supplier:
Learn more about "Add to quote"

Need Assistance?

Contact our knowledgeable Sales Teams on 01909 480055

  • 2-Post Lift
  • 3500kg
  • Electro-mechanical
  • New model
Full Description

The new 3.5T electro-mechanical lift from Space

  • Truly asymmetric columns designed to optimize the drive through and footprint
  • Internal carriages running on lubricated sliding guides, protected from the external environment, that ensures a longer life to the sliding elements
  • Quick nut replacing – new motor plate that allows to remove the screw from the front side of the column with the column standing
  • 3-stage arms with quick fit and telescopic rubber pads
  • Equipped with an acoustic anti toe trap system, free from mechanical foot guards
  • Aluminium pulley with cooling function
  • Minimum routine maintenance – the operating parts require little time for easy replacement or maintenance reducing the risk of error on safety elements
  • Guaranteed safety and quality over the time – the lift is equipped with premium components that guarantee durability and maximum safety for the operator
  • Quick and easy operations – the working bay is free of obstacles and the operations can be performed safely and comfortably
  • Motors with reinforced and cooling casing, 50% longer, bronze load nut
  • Smart and flexible installation – up to 20% improvement in installation time, the electronic synchronization avoids the installation and adjustment of the realignment cable, the lifts can be installed in a flexible way thanks to three width-adjustable positions.

Specification

Lifting capacity 3500kg
Required ceiling height 4150mm
Height overall 4035mm
Outside columns 3223mm
Inside columns 2700mm
Drive-thru 2472mm
Lifting height max 2000mm
Lifting / lowering time 42 secs
Power supply 400V, 50Hz, 3ph



Add to quote for a quick and convenient quotation direct to your inbox, alternatively contact our sales teams on 01909 480055 or [email protected].
