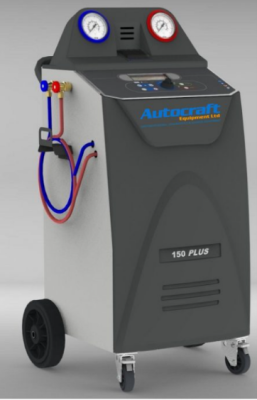

Smartcharge Model 150 Plus Automatic r134a Air Conditioning Machine

A simple to use fully automatic air conditioning r134a machine with vehicle database and print out.  Ideal for service on cars, vans, commercial vehicles, construction vehicles and agricultural vehicles.



Efficient in mobile use

• Innovative scales construction with a transport lock that can be fixed without tools ensures maximum shock reduction and allows easy mobile application.
• Device is also ideally suited for mobile use since the unit can be operated with a voltage transformer.



Smart documentation

• Reading and exporting data via USB interface (Excel). Enables the documentation of individual services as well as the evaluation of the total refrigerant consumption.



Ready to perform

• Rapid oil changing thanks to intelligent internal flushing of the pipe system (PAG to POE oil, etc.), including the flushing of the service hoses.



Service-friendly components

• Use of high quality and specially matched components, allows a long service interval time.



No unwanted access

Personalised access for the device can be set up, personal 4-digit password ensures access only for authorised persons.



Technical information

Dimensions:                             572 x 545 x 1045 mm

Weight:                                    65 kg

Casing:                                    metal with robust plastic cover

Power:                                      230 V / 50Hz

Operating temperature range:    10 / +49°C

Refrigerant:                              R134a

Refrigerant tank:                       11 kg

Refrigerant scale:                      60 kg loadable

Max. operating pressure:           20 bar

Compressor:                             1/3 HP

Recovery rate (liquid):               300 g/min

Main filter dryer (1 piece):          Type 660 Coaxial

Old oil discharge:                      Automatic

Old oil reservoir capacity:          250 ml

Oil / UV accuracy:                     ± 2 g

Vacuum pump capacity:            100 l/min

Electronic pressure sensor:       Included

PAG/POE oil charge:                Automatic

PAG/POE oil reservoir capacity: 250 ml

UV additive reservoir capacity:  100 ml

Refrigerant charge:                   Automatic

Flushing program:                     Included.



Price includes Smartcharge 150 R134a Machine, gloves, goggles, NO refrigerant
