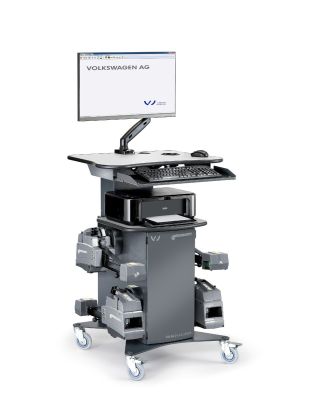

Beissbarth VAG 1813A Wheel alignment System

The Beissbarth VAG 1813A CCD Wheel Alignment system is for professional measurement according to Volkswagen provisions, with CCD-Technology and wireless data transfer, cabinet, High Performance PC, 27" monitor and printer, emergency cable set for for sensor heads, turntable Precision and quick clamps.

Perfectly integrated into ADAS calibration and head light testing:

• The space in front of the lift can be used for ADAS calibration boards and head light tester
• Permanent self-check and precise ADAS calibration jig orientation to the thrust vehicle's thrust angle
• No need for extra cameras, cables, or clamps required for ADAS calibration

Best in class: +/- 2 minute accuracy

• 360° measurement field for permanent self-check and adjustment of system to movement and vibrations
• No calibration to a specific lift allows a measurement on any wheel alignment bay
• Wireless data transfer and integrated battery enable full mobility and allow the use of Windows tablets or laptops
• Intelligent and space-saving charging solution that can be mounted on any wall
• Quality made in Germany

Sophisticated software for maximum measurement and adjustment efficiency

• Real-time display of measured values combined with vehicle specs
• Visually animated adjustment instructions for third-party vehicles
• Several languages as standard for staff from all over the world
• Toe indicator in full-lock state as well as track- and camber display in raised state for comfortable toe rod adjustment
• ASA network ready
• Data transmission: 433 Mhz
