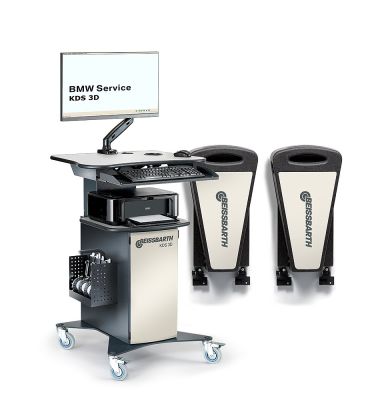

Beissbarth KDS 3D Wheel Alignment System

The Beissbarth KDS 3D Wheel Alignment with 3D technology is BMW approved - High speed, high precision and easy to use

Cable version, with cabinet, High Performance PC, 27" monitor and printer, incl. lift adapter, turntable Precision for front and rear axle, ride height markers and OEM magnetic clamps with longer magnets.

High measuring accuracy and precision for top results

• The combination of the Beissbarth stereo camera measurement system with active reference system and sophisticated software ensures the accurate determination of measured values.

Perfectly integrated into ADAS calibration and head light testing:

• The space in front of the lift can be used for the ADAS calibration jig and head light tester

Highly repeatable initial measurement

• Rolling or driving run-out compensation at ground level
• Three selectable measurement routines: program-driven, quick measurement, choice-free access to single-value check

Sophisticated software for maximum measurement and adjustment efficiency

• Real-time display of measured values combined with vehicle specs
• Visually animated adjustment instructions for third-party vehicles
• Several languages as standard for staff from all over the world
• ASA network ready

Easy and live ride height measurement with easy to attach ride height targets

• Ride height measured automatically
• Ride height measured permanently during alignment
• Automatic adjustment of vehicle specs according to ride height information
• Sensor heads can be easily detached from the lift when not in use to clear up space
• Beissbarth DualView camera system for ultimate control, especially of complex chassis
• No fixed position for targets on the vehicle eliminates room for error
• Plug & play: no calibration required for installation or for exchanging targets
• Extensive Beissbarth vehicle database including alignment helps directly from the OEMs
• Quality Made in Germany
• Cable version
• OEM approved machines for BMW
• Part no. 1 690 700 011
